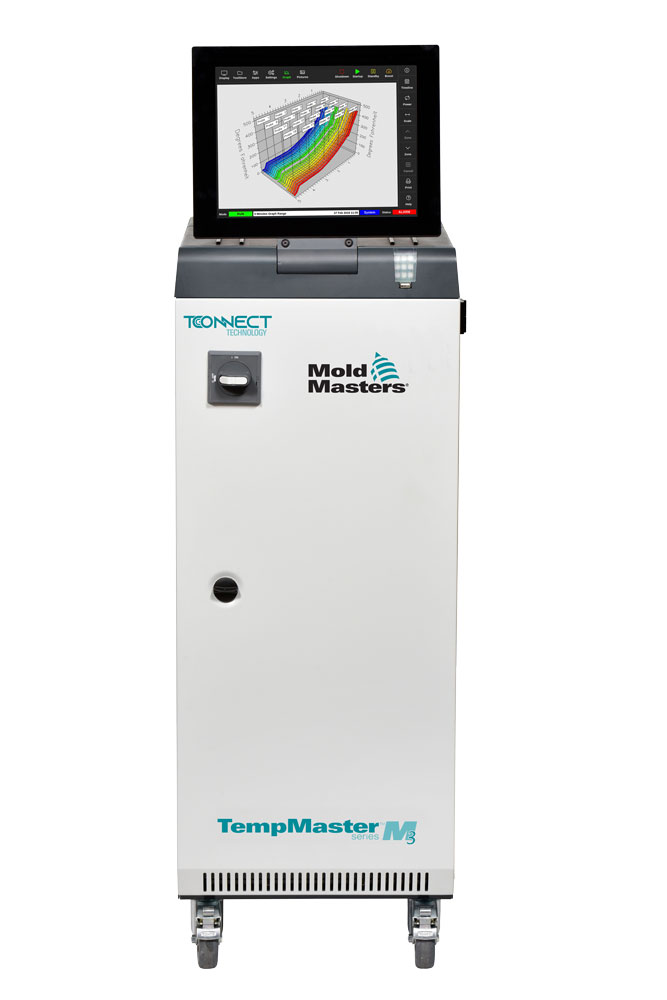

TempMaster M3

REVOLUTIONIZE YOUR OPERATION - ELIMINATE CONVENTIONAL TC MOLD CABLES

Mold-Masters NEW TempMaster M3 is a full featured controller platform which incorporates many new exciting innovations including revolutionary TC-Connect Technology and APS-AI. These technologies will simplify your molding cell, save you money and improve your process capabilities. Unlock your operations full potential with TempMaster.

    Features

    NEW TC-Connect Technology

    • Completely eliminates the need for conventional T/C mold cables (50% of all mold cables).
    • Connects via a single, thin and lightweight data communication cable (similar in size to Ethernet).
    • Wiring the Hot Runner system remains unchanged.
    • Compatible with new and older (retrofit) Hot Runner Systems.

    NEW APS-AI

    • Built upon our proven APS control algorithm for precision temperature control.
    • Now incorporates Artificial Intelligence (AI).
    • Reach set-point faster during start-up.

    Most Compact Dimensions in its Class

    • Up to 53% smaller footprint than competitive systems.
    • Up to 57% more compact overall dimensions.
    • Saves valuable floor space and is easier to move around.
    • NEW desktop format available.

    Cutting Edge Touch Screen Displays

    • Large, tablet like, crisp high resolution displays.
    • Real time data and instantaneous response to touch inputs.
    • NEW fold away design prevents damage when not in use (TS8/TS12).

    High Capacity Modular Control Card (4z-15A)

    • Reduce your card requirements by up to 50% (vs. competitors).
    • On-board heater and thermocouple fuses.
    • High reliability minimizes downtime.
    • Power to control a wide range of zones including nozzles, manifolds and more.
    Placeholder
    • Temperature Control Zones (Max): 192 @ 15A
    • User Interface: Full Color LCD Touch Screen
    • Display Sizes: 8" (203mm), 12" (305mm) or 17" (432mm)
    • Control Algorithm: APS-AI (Adaptive Process System with Artificial Intelligence)
    • Power Control: Phase Angle Burst Firing Modes (Time Proportional, Zero Crossing)
    • Temperature Display Resolution: 1° (C or F)
    • Power Response Time: 8.3ms at 60 Hz
    • Temperature Scale: °C or °F (Software Selectable)
    • Thermocouple: J or K-Type (Software Selectable)
    • Output Voltage (Max): 264 VAC
    • Supply Voltage: 200/240 3P Delta or 380/440V 3P Star (480V, 3P with transformer)
    • Ports: Serial, USB and Ethernet
    • Communications: SPI, Real VNC, Modbus, OPC-UA
    • Languages: English, French, German, Portuguese, Spanish, Polish, Russian, Chinese, Japanese, Czech, Italian, Turkish, Danish, Hungarian.

    *For more complete specifications, please refer to the product marketing literature in the “Downloads” section.



    Includes

    • 4.8m (15') Power Cable Set
    • Quick Start Guide
