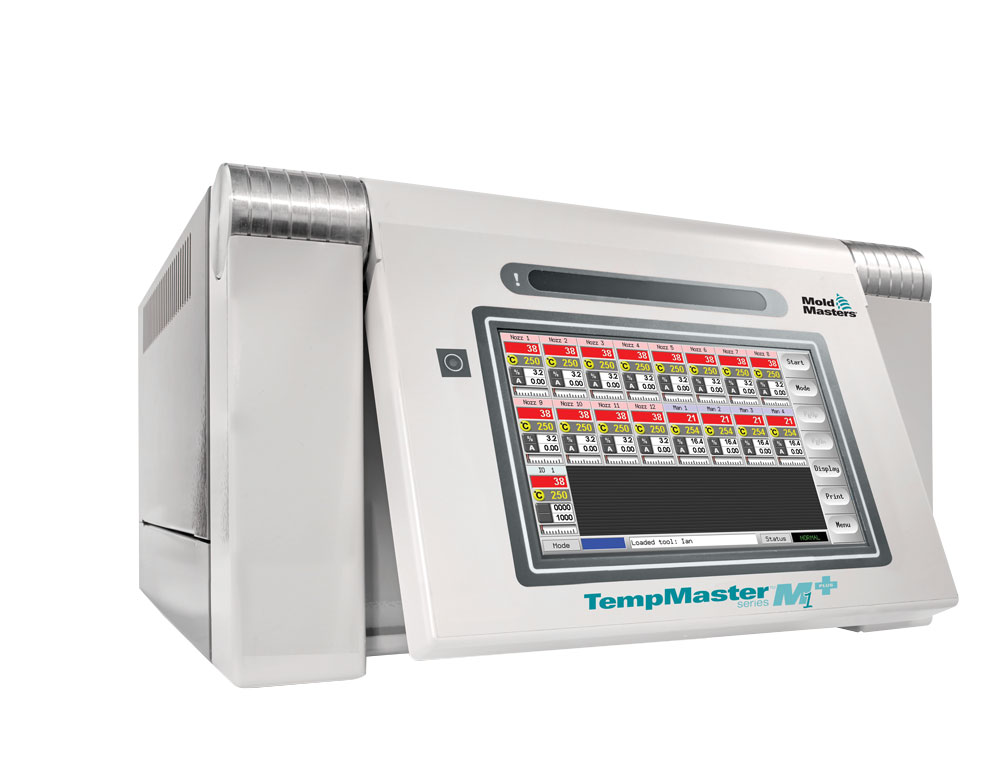

TempMaster M1+

ADVANCED, COMPACT TEMPERATURE CONTROL FOR MEDIUM SIZED MOLDS

The M1 platform combines popular features with advanced APS Technology for precision control of up to 48 zones. Powerful performance in a compact unit. Optimize the performance of any hot runner system and unlock your operations full potential with TempMaster.

    Features

    Large, Intuitive 7″ Touch Screen Color Display

    • Easily view, monitor and control multiple zones at once.
    • Simple to set-up and operate.
    • Data displayed in real time.

    Advanced Features & Settings

    • Excellent control and precision.
    • Achieve greater process stability.
    • Mold parts with higher quality and reduce scrap.

    Compact Cabinet Dimensions

    • Preserves valuable space.
    • Up to 32% smaller than competitive systems of the same class.
    • Can be placed almost anywhere.

    High Capacity Modular Control Card (6z-15A)

    • Reduces the number of cards required by up to 60%.
    • On-board heater and thermocouple fuses.
    • Eliminates excess wiring and improves accessibility.
    • Simple to access and maintain.

    IMM Communication (Optional)

    • Centralized alarm interlock.
    • Enhanced process control.
    • Prevents damage to equipment.
    Placeholder
    • Temperature Control Zones (Max): 48 @ 15A
    • User Interface: Full Color LCD Touch Screen
    • Display Size: 7" (178mm)
    • Control Algorithm: APS (Adaptive Process System)
    • Power Control: Phase Angle Burst Firing Modes (Time Proportional, Zero Crossing)
    • Temperature Display Resolution: 0.1° (C or F)
    • Power Response Time: 8.3ms at 60 Hz
    • Temperature Scale: °C or °F (Software Selectable)
    • Thermocouple: J or K-Type (Software Selectable)
    • Output Voltage (Max): 264 VAC
    • Supply Voltage: 200/240 Delta or 380/440V 3Ø Star
    • Languages: English, French, German, Spanish, Chinese, Japanese, Czech, Italian, Hungarian.

    *For more complete specifications, please refer to the product marketing literature in the “Downloads” section.

    Includes

    • 4.8m (15') Cable Set
    • Quick Start Guide

    Options

    • Alarm Beacon
    • Portable Stand
    • I/O Card (Included as standard in EU).
