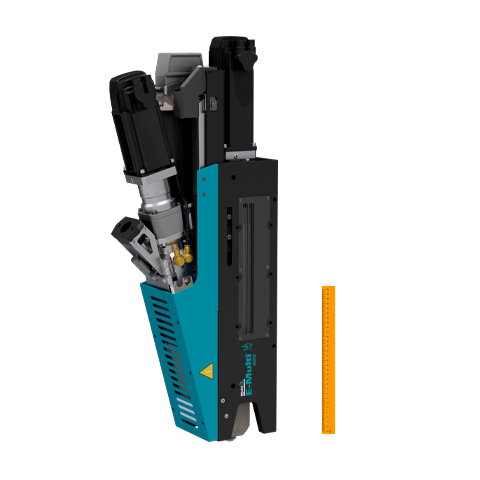

E-Multi mini

EXTEND YOUR CAPABILITIES INTO SMALL MULTI-SHOT APPLICATIONS

Easily and economically convert any existing Injection Molding Machine to allow multi-shot capabilities. The successful E-Multi, all electric, auxiliary injection platform offers proven precision, repeatability, versatility and reliability. The E-Multi mini is perfectly suited to meet the processing and capacity demands of your small shot multi-material applications across any industry.

    Features

    Broad Application Suitability

    • Multi-Shot
    • Multi-Material

    Servo Driven

    • High precision, fast, repeatable, and reliable performance.
    • Suitable for high tolerance applications.
    • Maintain critical shot weight accuracy.

    Universal Compatibility

    • Mounts directly to the mold.
    • Can be installed vertically, horizontally or at any angle.
    • Utilization on ANY injection molding machine.

    All Electric

    • Viable for cleanroom applications.
    • Minimal maintenance requirements.

    Powerful Compact Controller

    • Fully featured with advanced capabilities.
    • Wired pendant interface (standard)
    • Easy to navigate software.

    Injection Unit

    • Shot Volume (Min Theoretical): 0.1 cc (0.01 oz)
    • Shot Volume (Max Theoretical): 4.7 cc (0.17 oz)
    • Plunger Dia. Range: 8 – 9 mm (0.31 – 0.39″)
    • Stroke (Max): 100mm (3.9")
    • Injection Pressure (Max): 2,000 bar (29,000 psi)
    • Injection Rate (Max): 16 cc/s (0.55 oz/s)
    • Unit Dimensions: 830 x 140 x 335 mm (32 x 6 x 13")
    • Unit Weight: 55 kg (121 lbs.)

    *Please reference E-Multi brochure or technical documentation for complete details.

    Controller

    • 15" Touch Screen (Standard)
    • Dimensions (Cabinet Only): 617 x 330 x 635mm (24 x 13 x 25")
    • Machine Interface: E67 (alternatives available)
    • Input Voltage: 480VAC or 400VAC (200, 203, 575, 600VAC optional with external transformer only).
    • Options: Wireless Display Tablet Interface, Mobile Stand

    *Please reference E-Multi brochure or technical documentation for complete details
