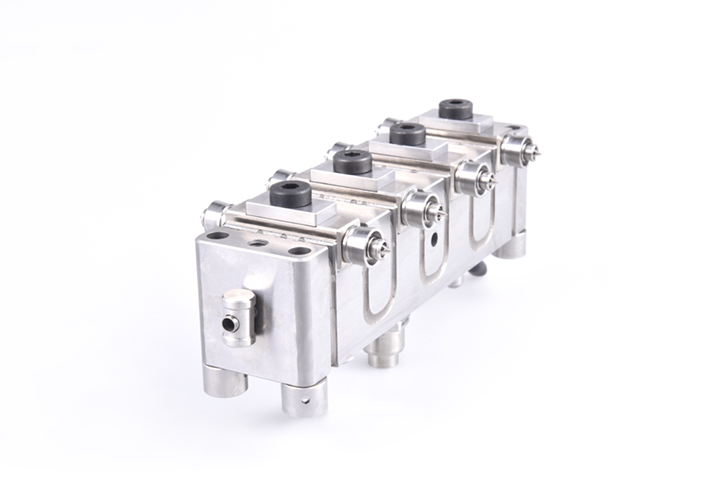

Melt-CUBE EVO

THE NEXT EVOLUTION IN ADVANCED IN-LINE SIDE GATE TECHNOLOGY

A newly evolved design that minimizes downtime and enhances processing capabilities. Simultaneous horizontal direct side gating solution of up to 8 cavities per Cube eliminates scrap from sub-runners and enhances part quality. Perfect for high cavitation molds producing deep draw medical parts such as pipette tips, syringe barrels, needle shields and more.

    Features

    Simplified Design

    • Servicing turnaround up to 85% faster.
    • Save up to 5 hours on a 64 cavity system.
    • Simple and straightforward maintenance procedures.

    Gate Located Tips

    • Alignment is not affected by thermal expansion.
    • Maintains tip to gate concentricity regardless of liner pitch spacing.
    • Superior leakage protection even with high MFI materials.
    • Quickly and easily replaced from the parting line.

    Brazed Heater Technology

    • Precise thermal profile of the manifold and gate to gate.
    • Excellent vestige control and low pressure drop.
    • Enhanced cavity-to-cavity rheological balance and shot-to-shot consistency.
    • Superior reliability maximizes uptime.
    • Eliminates spare heater costs.
    • Industry leading 10 year warranty available.

    High Capacity Design

    • Available with up to 2x more gates than  competitive inline side gating solutions.
    • Up to 43% higher pitch density than some competitive circular systems.
    • Allows for more compact, efficient and economical mold designs.

    Specialized Dual-Gate System Available

    • Enhances part tolerances by up to 62% (TIR).
    • Reduces cycle times by up to 50%.
    • Increased part weight capacity.
    • Max Part Weight: 10g (Single Gate), 20g (Dual-Gate - Application Dependant)
    • Cavities per Drop: 2 - 8
    • Tip Angle Range (from Horizontal): 0° only
    • Pitch Range: 20 – 50mm (0.79" - 1.97")
    • Tip to Tip Distance: 70mm (2.76")
    • Compatible Resins: ABS, PC, POM, PP, PE, HDPE, LLDPE, COC and More.

    NOTE: For applications requiring angled tips please refer to Melt-CUBE.
