MX / CX / GX

ACHIEVE THE HIGHEST QUALITY GATES, RELIABLY, FOR MILLIONS OF CYCLES

Precision cylindrical gate component alignment that significantly minimizes wear that leads to gate quality deterioration. Avoid the costly maintenance and downtime associated with traditional valve gate designs. Compatible with both commodity and engineering grate resins, Accu-Valve meets the demanding needs of many Medical, Packaging, Personal Care and many other applications.

Features

Precision Alignment

  • Highest quality gate results.
  • Minimizes maintenance requirements.
  • Significantly lowers operating costs.
  • 3 Million Cycle (1 Year) warranty available.

Continuous 360° Pin Guidance

  • Does not require direct reliance on cavity steel for pin alignment to the gate.
  • Significantly minimizes wear of the gate and valve pin.
  • Maintains critical high tolerance dimensions and concentricity.
  • Enhances reliability.
  • Extends service life.

Enhanced Thermal Profile

  • Uninterrupted heat transfer to the valve pin.
  • Helps to enhance gate cosmetics.

Widest Selection

  • 3 models to choose from.
  • Optimized designs based on the application.
  • Enhanced fill balance, fast color change or simplified maintenance.
  • Capable of rapid cycle times.

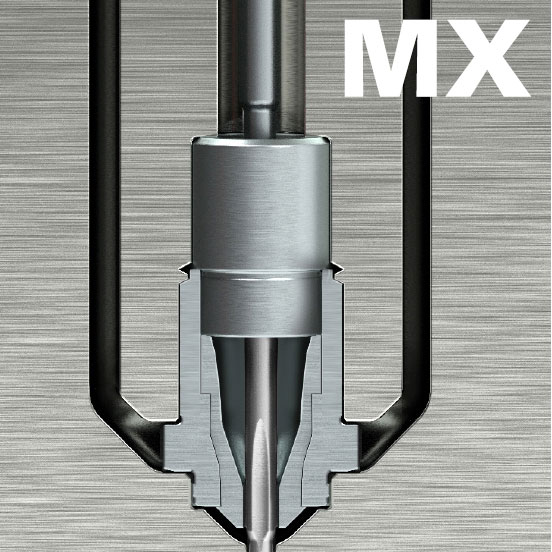

MX - Enhanced Fill Balance

  • Compatible Hot Runner Systems: Master-Series, Summit-Series, VelocityLS, ThinPAK-Series
  • Compatible Nozzle Sizes: Femto-Lite to Deci (<1g to 500g)
  • Resin Grades: Commodity & Engineering
    Resin Examples: PP, ABS, PC, POM
  • Gate Ø Range: <1.0 - 3.4mm (<0.04" - 0.13")

CX - Fast Color Change

  • Compatible Hot Runner Systems: Master-Series, Summit-Series, VelocityLS
  • Compatible Nozzle Sizes: Femto-Lite to Deci (<1g to 500g)
  • Resin Grades: Commodity
  • Resin Examples: PP, PS, TPE, ABS
  • Gate Ø Range: <1.4 - 4.0mm (<0.06" - 0.16")

GX - Simplified Maintenance (Replaceable Gate Insert)

  • Compatible Hot Runner Systems: Master-Series, Summit-Series, VelocityLS
  • Compatible Nozzle Sizes: Femto to Deci (5g to 500g)
  • Resin Grades: Commodity & Polyolefin
  • Resin Examples: PP, PE, TPE
  • Gate Ø Range: 1.0mm Only (0.04")
  • Gate Insert Tip Ø (OD): 3.0mm (0.12")
