E-Multi

THE MOST VERSATILE, ALL ELECTRIC SERVO DRIVEN, THERMOPLASTIC AUXILIARY INJECTION UNIT

Open the door to precision multi-shot applications. E-Multi easily and economically converts any existing Injection Molding Machine to allow multi-shot capabilities. The successful E-Multi platform offers proven precision, repeatability, versatility, and reliability. Compatible with a wide range of thermoplastic materials, E-Multi is the ideal solution for a wide range of applications across any industry.

Features

Servo Driven

  • High precision, fast, repeatable, and reliable performance.
  • Suitable for high tolerance applications.
  • Program up to 10 injection profiles and holding pressures.
  • Statistical process and production tracking.

Versatile Mounting Options

  • Vertical, horizontal, and custom mounting options.
  • Can adapt to many requirements.
  • Various feeding options available.

Compact Design

  • Preserves valuable floor space.
  • Save up to 100ft²  (9.3m²) of space compared to alternatives.
  • Vertical installations virtually eliminate any footprint.

Universal Compatibility

  • Can be installed on ANY Injection Molding Machine.
  • Seamless operation via IMM interface.
  • Integrate robotic interface.

All Electric

  • Energy-efficient.
  • Viable for cleanroom applications.
  • Minimal maintenance requirements.

Powerful E-Multi Controller

  • Fully featured unit with advanced capabilities.
  • Provides complete process control and flexibility.
  • Option to easily integrate additional functionality.

“I am fully convinced that this is the best injection unit on the market.”

Ficomirrors Polska Sp

Injection Unit

  • Shot Volume (Max Theoretical): 1,237 cc (41.83 oz)
  • Screw Dia. Range: 14 – 75 mm (0.55 – 2.95″)
  • Stroke (Max): 280mm (11.0")
  • Injection Pressure (Max): 2,510 bar (36,400 psi)
  • Injection Rate (Max): 1,325 cc/s (44.8 oz/s)
  • Plasticizing Screw: General purpose (Std), Specialty (Optional)
  • Material Feed: Tube or Hopper

*Please reference E-Multi brochure or technical documentation for complete details.

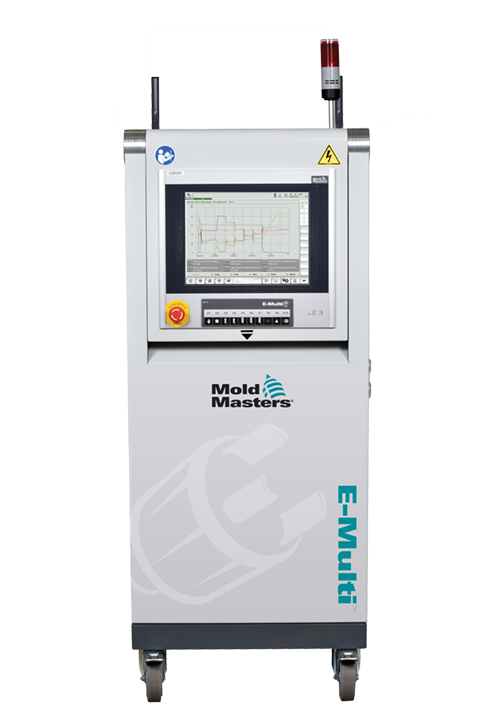

Controller

  • Touch Screen Size: 15"
  • Machine Interface: E67 (SPI with adapter)
  • Input Voltage: 480VAC or 400VAC (200, 203, 575, 600VAC optional with external transformer).
  • Valve Gate Control: 2 (Std), 12 (Max)
  • Temperature Control (Max): 36 zones (Optional)

*Please reference E-Multi brochure or technical documentation for complete details
