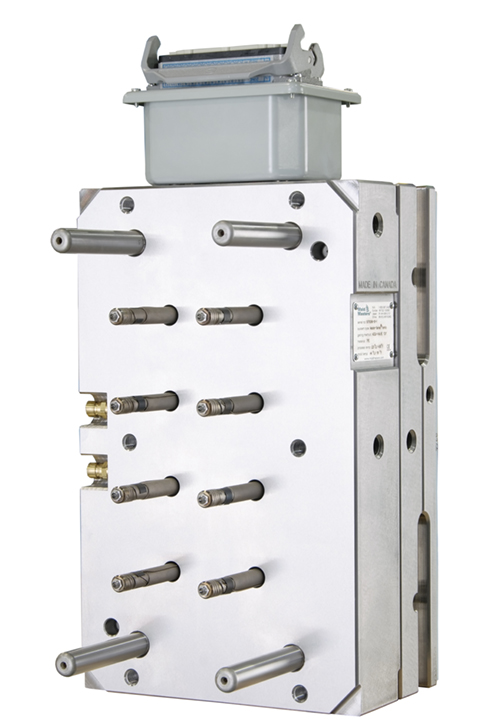

ThinPAK-Series

THE SPECIALIZED HOT RUNNER SYSTEM FOR HIGH PRESSURE THIN WALL PACKAGING

The best solution for producing exceptional high quality thin wall packaging products from small in-mold labeled containers to large pails. Incorporating new MasterSHIELD Technology, ThinPAK-Series has the strength and durability to mold with complete reliability in high pressure applications up to 2,800 Bar. Compatible with PP, PS and other resins.

Features

New ThinPAK Nozzles

  • Precisely balanced thermal profile.
  • Excellent process control and repeatability.
  • High molded part quality.
  • Serviceable from the parting line.

New ThinPAK Manifold

  • Exceptional strength and reliability.
  • 40% higher pressure limit than our standard manifold designs.
  • Ideal for high pressure thin wall applications.

New MasterSHIELD Technology

  • Reliable leakage protection even on cold start-ups.
  • Helps eliminate unscheduled interruptions.
  • Minimizes maintenance and service interval requirements.
  • Mold with confidence and complete peace of mind.

Brazed Heater Technology

  • Precise thermal balance and control.
  • Superior reliability maximizes uptime.
  • Eliminate spare heater costs.
  • Energy efficient.

Industry’s Best Warranty

  • Available 10 year coverage.
  • Shot Range: 15g – 500g
  • Runner Ø Range: 6 - 11mm (0.24" - 0.43")
  • Nozzle Length Range (Std): 76 – 211 (2.99" – 8.31")
  • Minimum Pitch: 50mm (1.97")
  • Bore Cut-Out Ø (Min): 26mm (0.1.02")
  • Actuation Options: Pneumatic or Hydraulic
  • Advanced Molding Capabilities: High Pressure, Tight Pitch, Stack Molds, High Cavitation.
  • Available as an assembly or hot half system

Available Gating Styles

Non-Valved

  • E-Type Torpedo

Valved

  • Accu-Valve MXT
  • Extended Bi-Metallic C-Valve (with or without vespel cap)
